Submersible Sump/Utility Pumps
Designed to efficiently remove water from enclosed spaces like sump pits, basements, and utility areas, these pumps prevent flooding and water damage by swiftly pumping out accumulated water. Widely used in residential, commercial, and industrial settings, they aid in maintaining dry and safe environments while facilitating drainage in diverse situations.

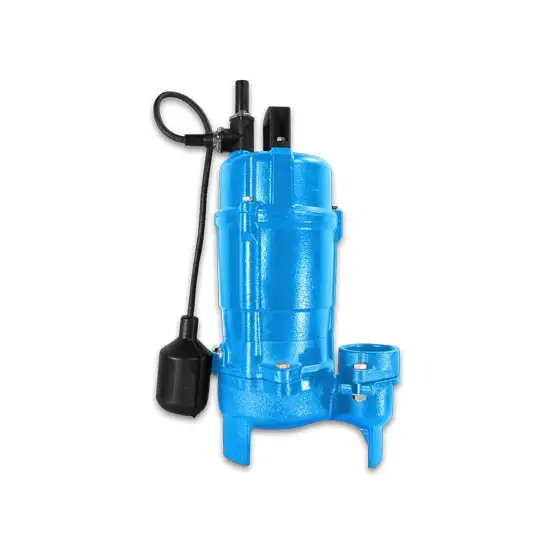

SVEN series
Key features:
- Discharge: 2″ NPT, vertical.
- Spherical solids handling: 1.37″
- HP: 0.5 & 1
- RPM: 3450
- Impeller: 8 vane, semi-open, vortex. Hytrel®.
- Shaft: 410 AISI stainless steel
- Motor: Dry type submersible motor, 1 & 3 phase, 115 & 230 V, 60 Hz, 3450 RPM. Insulation Class B and IP68 protection class.

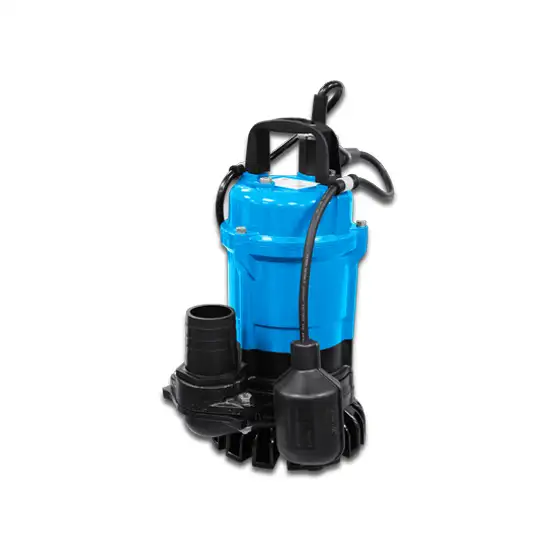

2AHS series
Key features:
- Discharge: 2″ NPT, vertical.
- Spherical solids handling: 1/4″
- HP: 0.5, 1 & 2
- RPM: 3450
- Impeller: 8 vane, open, semi-vortex. Hytrel® thermoplastic elastomer.
- Shaft: 410 series stainless steel
- Motor: dry type submersible motor, 1 & 3 phase, 115 & 230 V, 60 Hz, 3500 RPM. For continuous duty, with thermal protector IP68 in winding, insulation Class B.

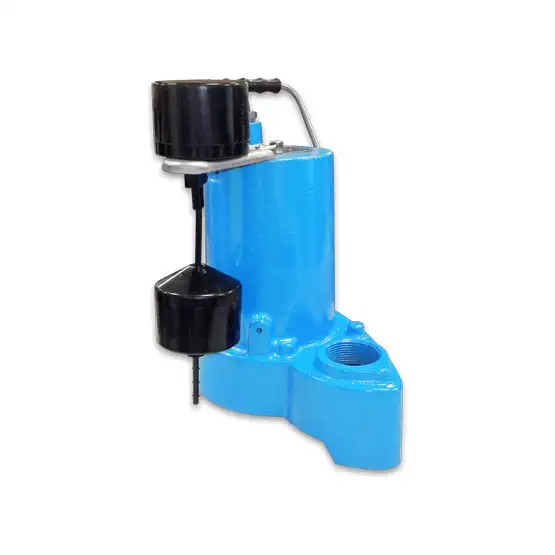

BP33 & BP50 series
Key features:
- Discharge: 1½» NPT, female, vertical.
- Spherical solids handling: 1/2″
- HP: 0.3 & 0.5
- RPM: 3500
- Impeller: 10 vane vortex, with vanes on back side, dynamically balanced. Cast iron ASTM A-48, Class 30.
- Shaft: 416 series stainless steel
- Motor: NEMA L, single-phase, permanent split capacitor, 120 V, 60 Hz, oil filled, with overload protection in motor.
- Pump operation: automatic float switch or automatic vertical float switch
