Submersible Grinder Pumps

Engineered to macerate and pump wastewater laden with solid materials and debris, these pumps are prevalent in sewage systems, septic tanks, and industrial setups. Their effectiveness lies in preventing clogs and blockages in pipes and sewage systems, ensuring the smooth and efficient transportation and disposal of wastewater.

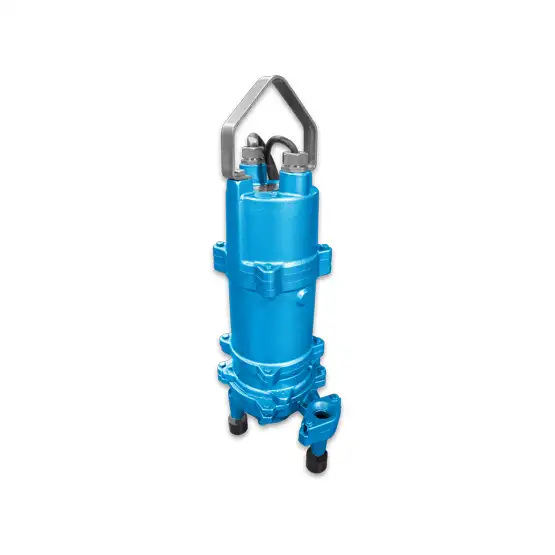

BGP-DS / 2 HP series

Key features:

  • Discharge: 1¼» NPT, vertical.
  • HP: 2
  • RPM: 3500
  • Impeller: 12 vanes, vortex with vanes on back side, dynamically balanced. Cast iron ASTM A-48, Class 30.
  • Radial cutter & shredder ring: hardened 440C, stainless steel, hardness Rockwell C-55.
  • Shaft: 420 series stainless steel
  • Motor:
    •  Single-phase: permanent split capacitor, 220 V, 60 Hz, oil filled, with overload protection in motor. Class F insulation.
    •  Three-phase: 220/440 V, 60 Hz, oil filled with overload protection in motor. Class F insulation.

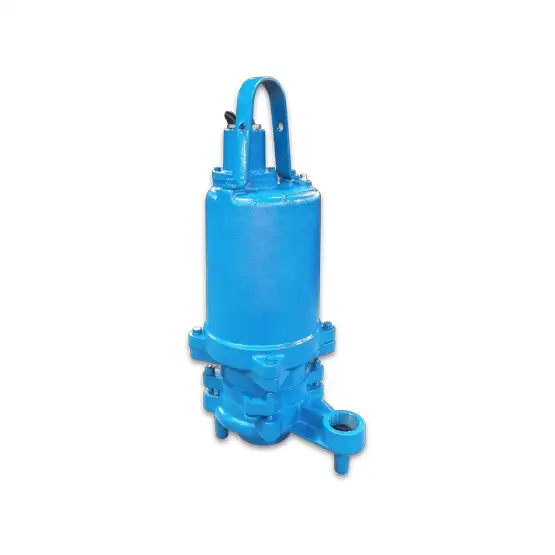

BGP-DS / 3, 5 & 7.5 HP series

Key features:

  • Discharge: 2″ NPT, vertical.
  • HP: 3, 5 & 7.5
  • RPM: 3500
  • Impeller: 10 vanes, vortex with vanes on back side, dynamically balanced. Cast iron ASTM A-48, Class 30.
  • Radial cutter & shredder ring: hardened 440C, stainless steel, hardness Rockwell C-55.
  • Shaft: 420 series stainless steel.
  • Motor:
    •  Single-phase: NEMA L, permanent split capacitor (to be located in control panel), 230 V, 60 Hz, oil filled. Class F insulation.
    •  Three-phase: NEMA B, 208, 230 & 460 V, 60 Hz, oil filled. Class F insulation.
    • Requires overload protection to be included in control panel.

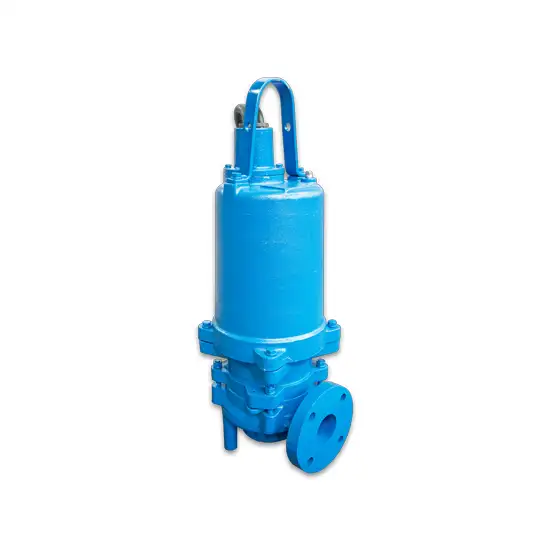

BGPH-DS / 3, 5 & 7.5 HP series

Key features:

  • Discharge: 2½» flange, horizontal.
  • HP: 3, 5 & 7.5
  • RPM: 3500
  • Impeller: 10 vanes, vortex with vanes on back side, dynamically balanced. Cast iron ASTM A-48, Class 30.
  • Radial cutter & shredder ring: hardened 440C, stainless steel, hardness Rockwell C-55.
  • Shaft: 420 series stainless steel.
  • Motor:
    •  Single-phase: NEMA L, permanent split capacitor (to be located in control panel), 230 V, 60 Hz, oil filled. Class F insulation.
    •  Three-phase: NEMA B, 208, 230 & 460 V, 60 Hz, oil filled. Class F insulation.
    • Requires overload protection to be included in control panel.

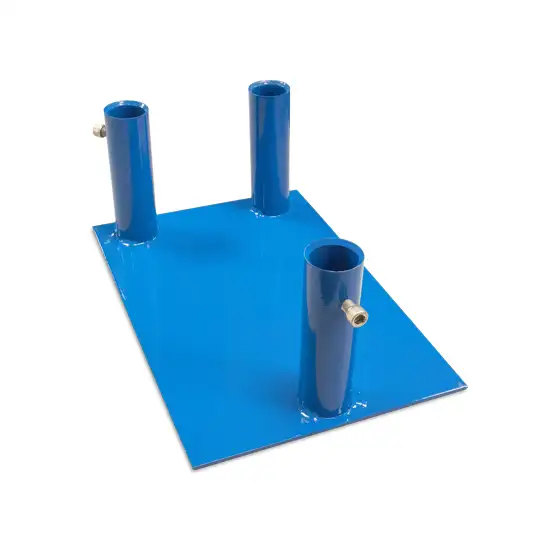

BGP Series Pump Stand series

Introducing our stainless steel base plate, complete with hardware for mounting any of our 3, 5, or 7.5 HP grinder pumps. This robust base plate ensures secure and efficient installation, providing a stable foundation for grinder pumps of various capacities. Simplify your installation process and enhance durability with our high-quality stainless steel base plate solution.
