End-Suction Centrifugal Close Coupled Pumps

Devices utilizing centrifugal action to generate significant and intermediate fluid pressures. In significant pressure scenarios, the impeller rotation boosts fluid pressure, serving pressurized water systems, irrigation, industrial processes, and drilling. In moderate pressure applications, impeller-driven velocity elevates fluid pressure, suitable for heating/cooling systems, commercial building water supply, medium-scale irrigation, and diverse industrial uses. Their efficient design adeptly manages liquid flows across varying pressure ranges.

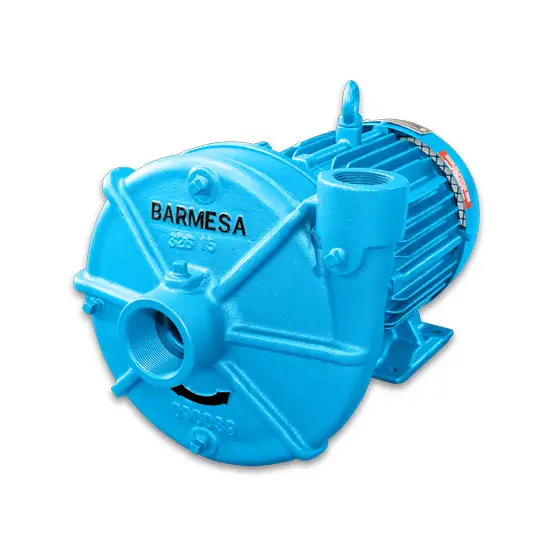

IA series

Key features:

  • Suction: 1½» – 8″ NPT or flange
  • Discharge: 1″ – 6″ NPT or flange
  • HP: 2 – 125
  • RPM: 1750 & 3500
  • Impeller: enclosed, dynamically balanced. Cast iron ASTM A-48, Class 30.
  • Motor: high quality premium efficiency TEFC electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
    •  1 & 3 phases, 60 Hz
    •  Frame sizes: 182JM to 405JM

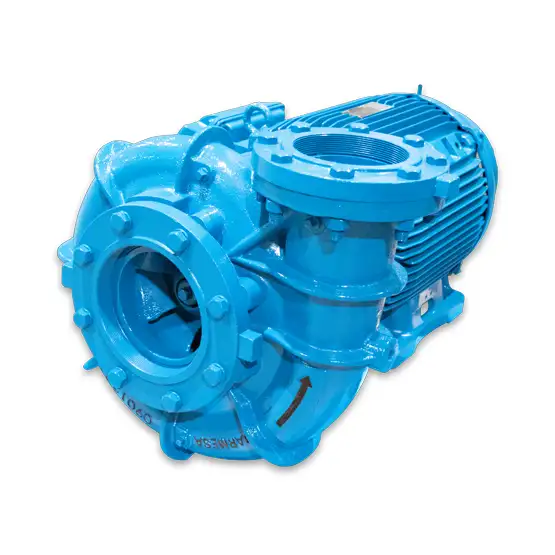

IA6BJH

Key features:

  • Suction: 8″ flange. Includes 8″ NPT threaded flange.
  • Discharge: 6″ flange. Includes 6″ NPT threaded flange.
  • HP: 75 – 200
  • RPM: 1750
  • Liquid temperature: 160 °F (71 °C) max.
  • Max. pressure: 250 ft (108 PSI)
  • Max. flow: 3750 GPM (14,195 LPM)
  • Impeller: closed type, dynamically balanced. Cast iron ASTM A-48, class 30.
  • Motor: high quality premium efficiency TEFC electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
    •  3 phases, 60 Hz
    •  Frame sizes: 404/5 JP, 444/5TCZ and 445/7TCZ

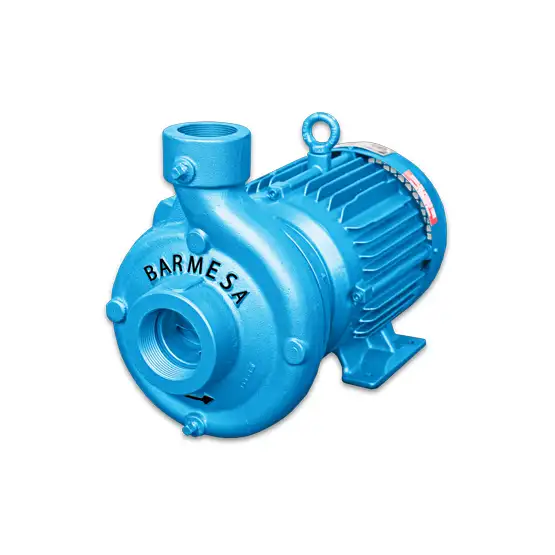

IB series

Key features:

  • Suction: 2″ – 3″ NPT, female.
  • Discharge: 1½» – 2½» NPT, female.
  • HP: 1 – 15
  • RPM: 1750 & 3500
  • Impeller: investment casting, statically balanced. Stainless steel 304.
  • Motor: high quality premium efficiency TEFC electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
    •  1 & 3 phases, 60 Hz
    •  Frame sizes: 143JM to 254JM

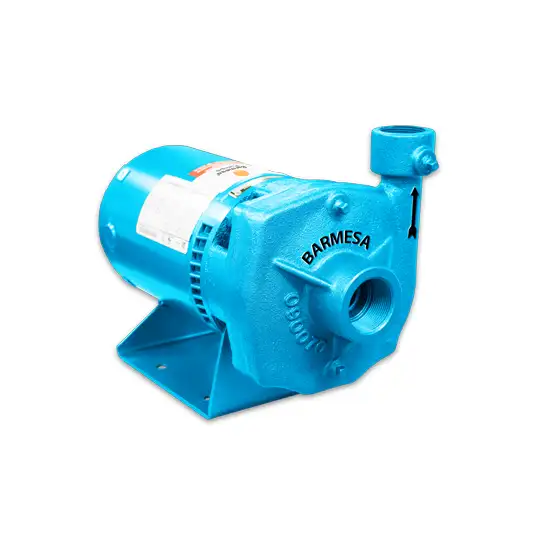

IC1¼ series

Key features:

  • Suction: 1½» NPT, female.
  • Discharge: 1¼» NPT, female.
  • HP: 1 – 3
  • RPM: 3500
  • Impeller: 5 vanes, closed, statically balanced. Cast iron ASTM A-48, Class 30.
  • Motor: high quality premium efficiency TEFC or ODP electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
    •  1 & 3 phases, 60 Hz

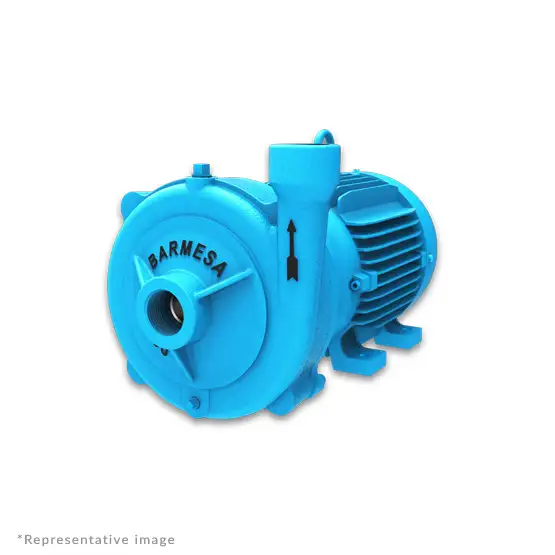

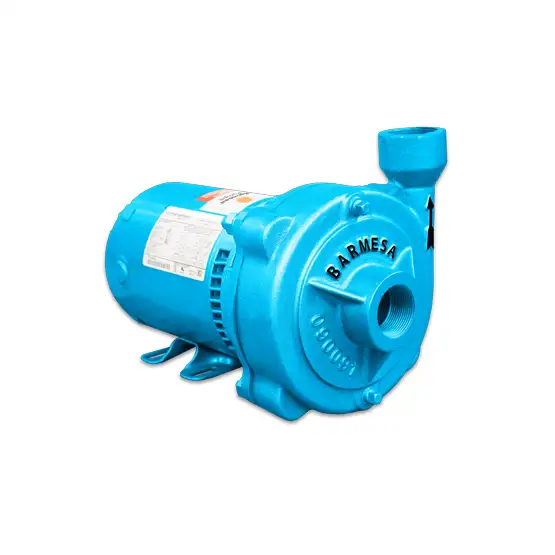

IC1½ series

Key features:

  • Suction: 1½» NPT, female.
  • Discharge: 1½» NPT, female.
  • HP: 1.5 – 7.5
  • RPM: 3500
  • Impeller: 4 vanes, closed, statically balanced. Noryl®.
  • Motor: high quality premium efficiency TEFC or ODP electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
    •  1 & 3 phases, 60 Hz

IC1½H series

Key features:

  • Suction: 1½» NPT, female.
  • Discharge: 1½» NPT, female.
  • HP: 1 – 15
  • RPM: 3500
  • Impeller: 5 vanes, closed, statically balanced. Cast iron ASTM A-48, Class 30.
  • Motor: high quality premium efficiency TEFC electric motors, designed & developed in accordance with industry standards for industrial and commercial pumping applications.
    •  1 & 3 phases, 60 Hz

End-Suction Centrifugal Frame Mounted Pumps

These pumps efficiently move fluids using centrifugal force, offering versatility and reliability in industrial, agricultural, and commercial settings. They facilitate fluid transfer in applications such as water supply, circulation, and HVAC systems, thanks to their robust design and frame-mounted configuration, ensuring consistent performance and effective operation.

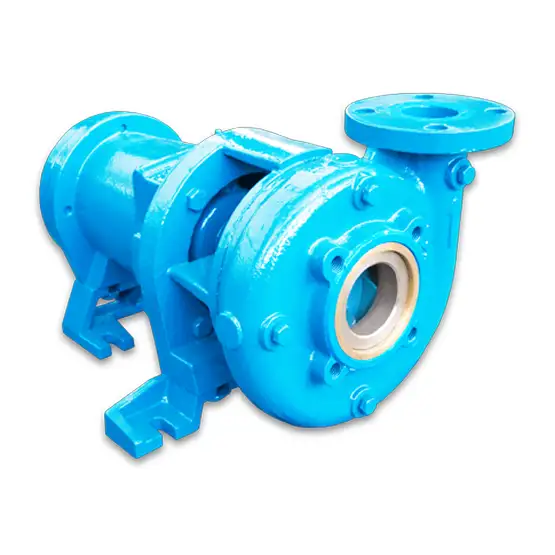

BES2025CU7

Key features:

  • Suction: 2½» 125 lb. ANSI flange.
  • Discharge: 2″ 125 lb. ANSI flange. It can be placed in 4 different locations depending on piping requirements.
  • Impeller: enclosed type, dynamically balanced, ISO G6.3, maximum spheres 0.375″, 304 stainless steel.

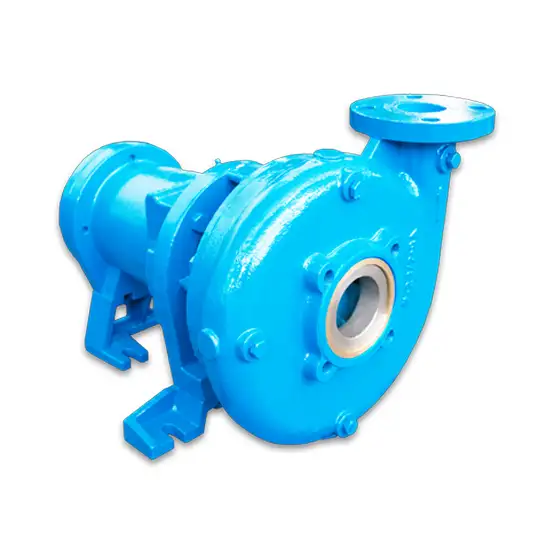

BES2025CU9

Key features:

  • Suction: 2½» 125 lb. ANSI flange.
  • Discharge: 2″ 125 lb. ANSI flange. It can be placed in 4 different locations depending on piping requirements.
  • Impeller: enclosed type, dynamically balanced, ISO G6.3, maximum spheres 0.625″, 304 stainless steel.

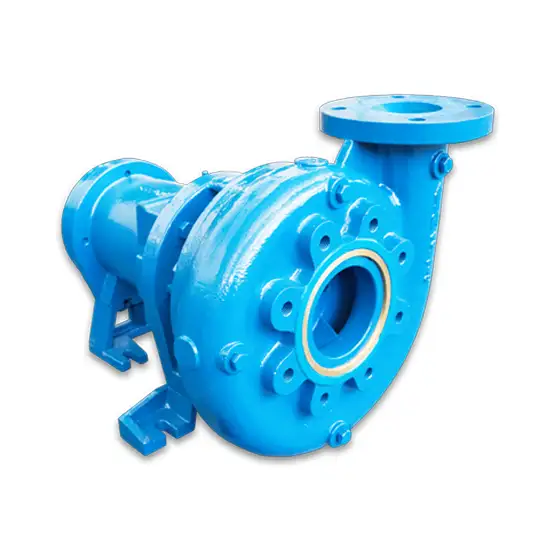

BES3040CU9

Key features:

  • Suction: 4″ 125 lb. ANSI flange.
  • Discharge: 3″ 125 lb. ANSI flange. It can be placed in 4 different locations depending on piping requirements.
  • Impeller: enclosed type, dynamically balanced, ISO G6.3, maximum spheres 0.75″, 304 stainless steel.

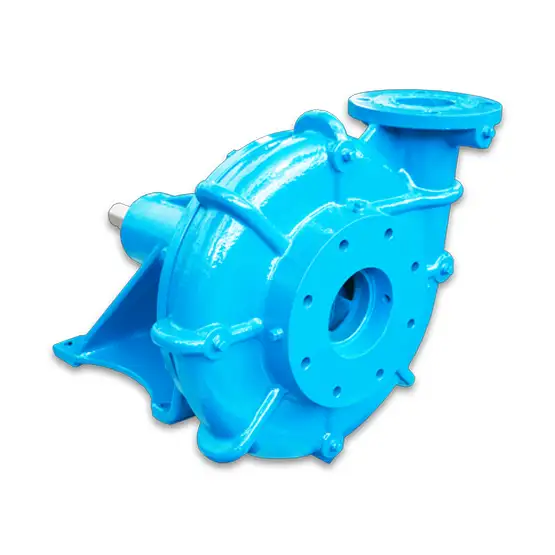

BES4030HCU

Key features:

  • Suction: 4″.
  • Discharge: 3″ 125 lb. ANSI. It can be placed in 8 different locations depending on piping requirements.
  • Impeller: enclosed type, dynamically balanced, ISO G6.3, 304 stainless steel

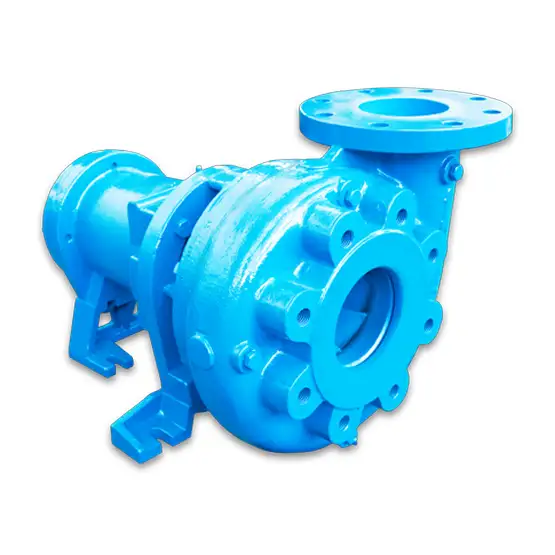

BES4050CU9

Key features:

  • Suction: 5″ 125 lb. ANSI flange.
  • Discharge: 4″ 125 lb. ANSI flange. It can be placed in 4 different locations depending on piping requirements.
  • Impeller: enclosed type, dynamically balanced, ISO G6.3, maximum spheres 0.69″, 304 stainless steel.

End-Suction Centrifugal Stainless Steel Pumps

These pumps efficiently handle fluid transfer tasks in various industrial, commercial, and municipal environments. Constructed from stainless steel, they are ideal for applications requiring corrosion resistance and hygiene, such as water supply, chemical processing, food and beverage industries, and pharmaceutical manufacturing. Their durability and reliability make them valuable assets in fluid transfer operations where cleanliness and longevity are paramount.

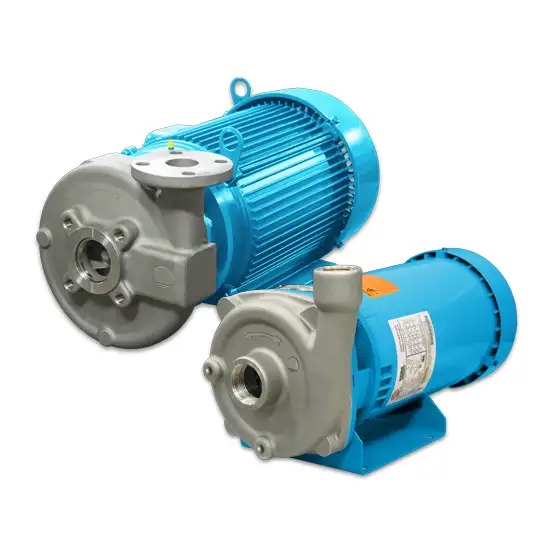

BCS/BCSF series

Key features:

  • Suction: 1¼», 1½», 2″ or 3″ horizontal
  • Discharge: 1¼», 1½» or 2″ vertical
  • HP: 0.5 – 25
  • RPM: 1750 & 3500
  • Impeller: closed type, AISI 316 stainless steel.
  • Motor: NEMA standard, open drip-proof (ODP) and totally enclosed fan-cooled (TEFC), 60 Hz, single-phase 115/208-230 V, three-phase 208-230/460 V. Overload protection must be provided.

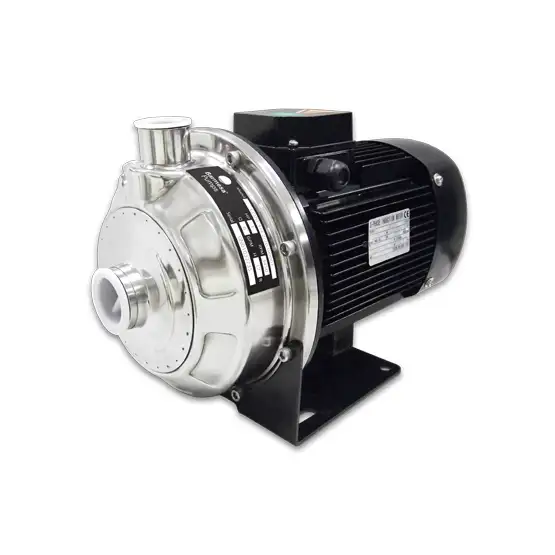

CD series

Key features:

  • Suction: 1¼» & 1½» NPT horizontal
  • Discharge: 1″ & 1¼» NPT vertical
  • HP: 1 – 3
  • RPM: 3500
  • Impeller: closed type, 304 series stainless steel.
  • Motor: IE2, TEFC, 3450 RPM (2 poles), 60 Hz, three-phase 230/460 V, protection Class IP55 and insulation Class F.

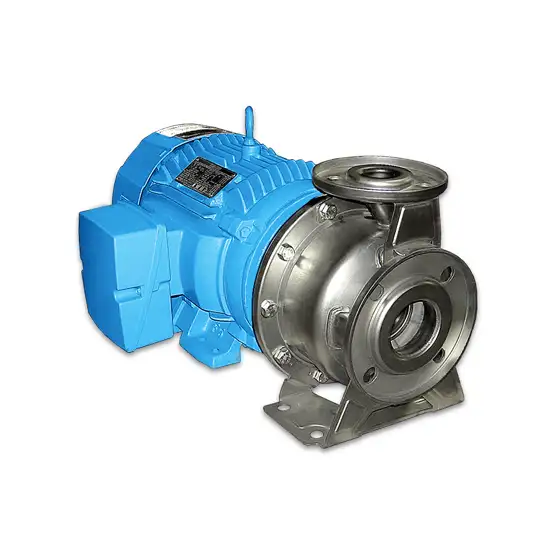

PS series

Key features:

  • Suction: 2″ & 2½», 150 lb ANSI, flange horizontal.
  • Discharge: 1¼», 1½» & 2″, 150 lb ANSI, flange vertical.
  • HP: 1 – 15
  • RPM: 1750 & 3450
  • Impeller: closed type, 304 series stainless steel.
  • Motor: NEMA JM, TEFC, 60 Hz, three-phase, 230/460 V

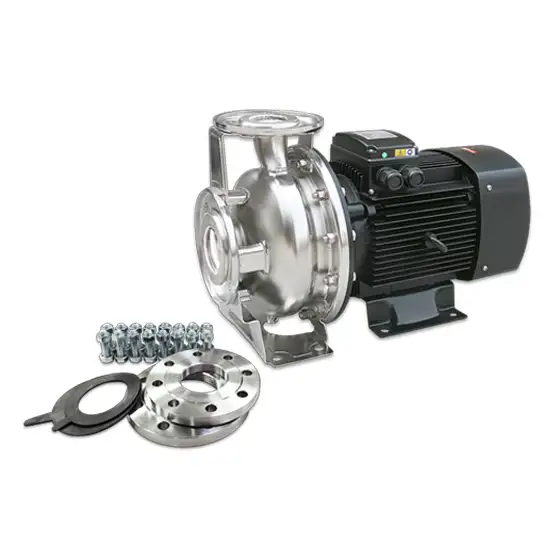

SOX series

Key features:

  • Suction: 2″, 2½», 3″ and 4″ horizontal flange 150 lb DIN
  • Discharge: 1¼», 1½», 2″, 2½» and 3″ vertical flange 150 lb DIN
  • HP: 1.5 – 50
  • RPM: 3450
  • Impeller: closed type, 304 series stainless steel.
  • Motor: high efficiency, totally enclosed with external ventilation; 60 Hz, 3450 RPM, single phase 230 V and three-phase 230/460 V, Class F insulation. Built-in thermal protection in single-phase motors. Requires installation of electrical overload protection.
