Slide Rail Couplings
These couplings are designed for wet wells, tanks, or lift stations where it is necessary to remove a pump from service and reinstall the pump without maintenance personnel entering the pit to unbolt the pumps flanges.

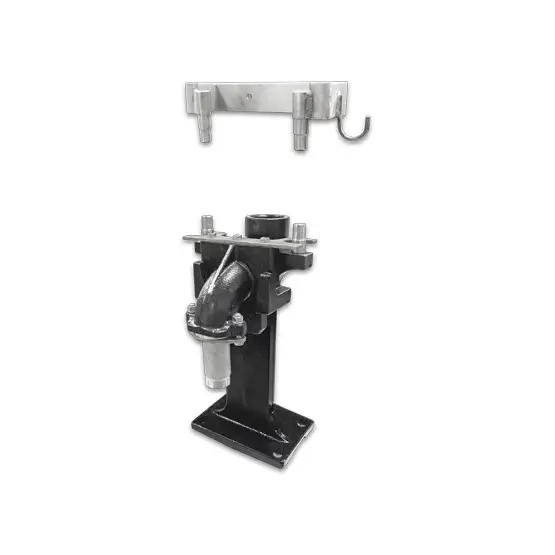

SRC125
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless stee

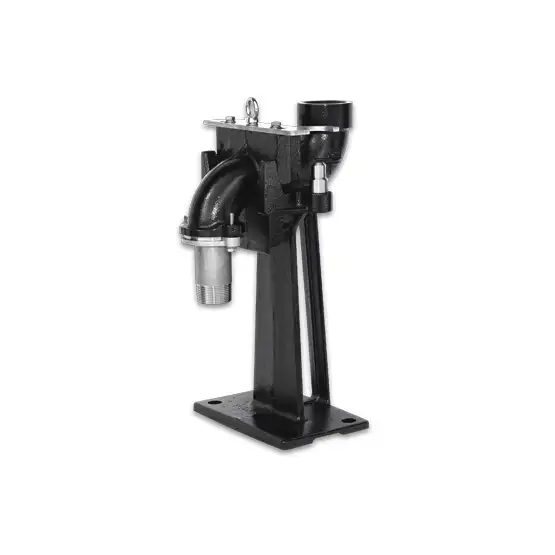

SRC150
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless steel
SRC200
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless steel

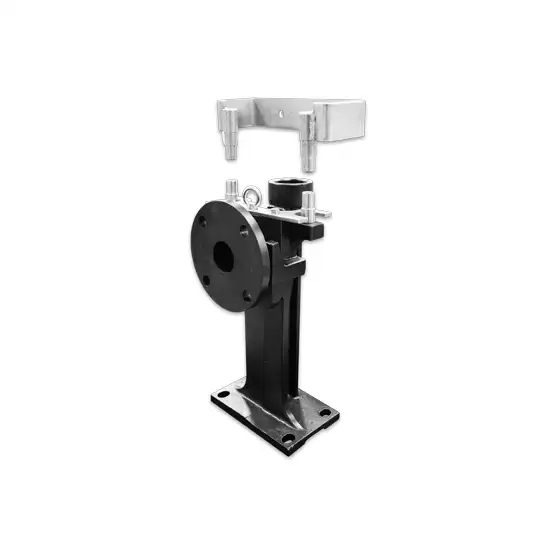

SRCH200
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless steel

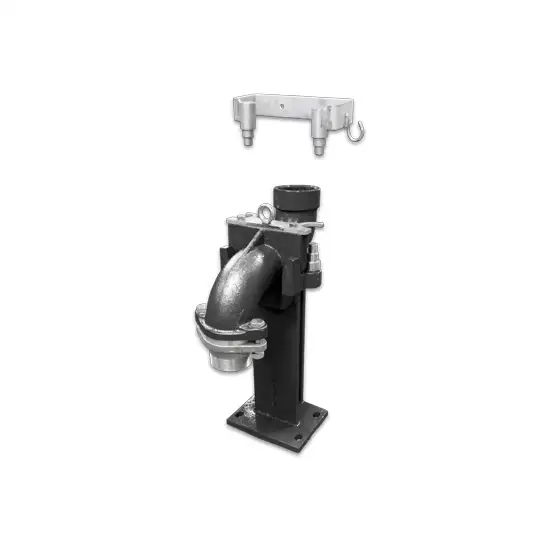

SRC300
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless steel

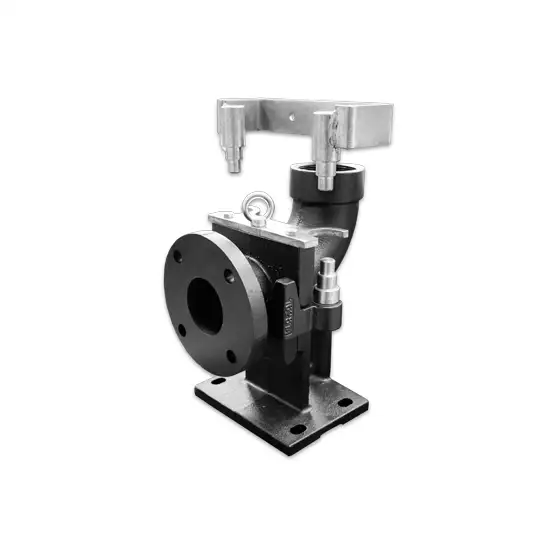

SRCH300
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless steel

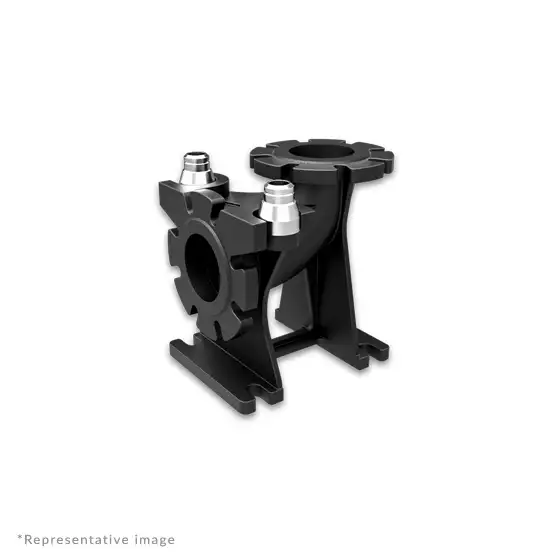

SRC4
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless steel

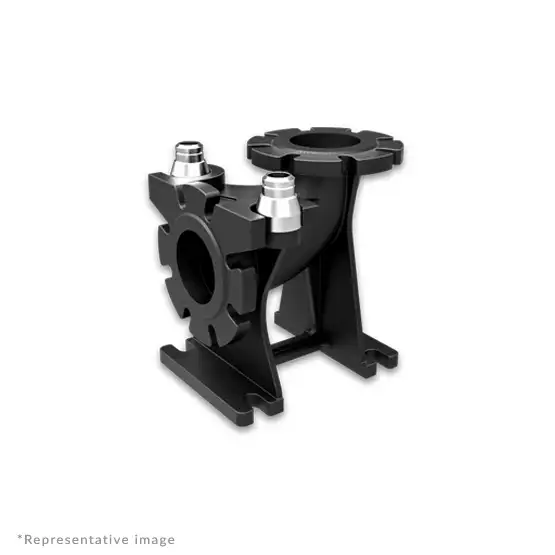

SRC6
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless steel

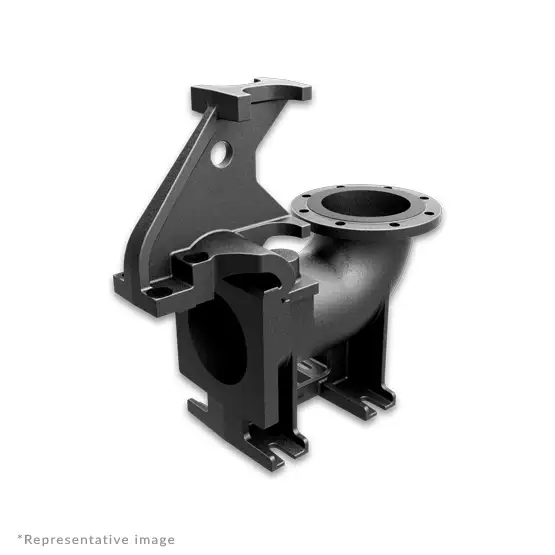

SRC8
Key features:
- Stationary elbow: cast iron, ASTM A-48, Class 30.
- Guide rail cap: 304 series stainless steel

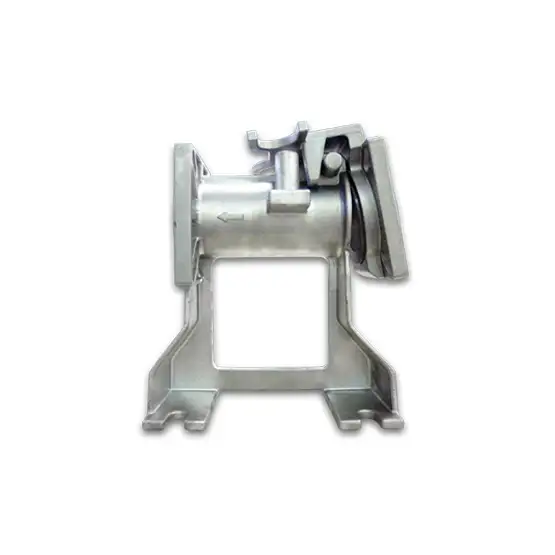

SQM for BSV pumps
with 2″ & 3″ horizontal discharge
Key features:
- 2″ NPT vertical discharge
- 1″ stainless steel guide rails (provided by installer)
- Stress-free rail system
- Durable stainless steel base and lift-out flange
- Stainless steel pump adapter and guide plate
- Guide rail cap: 304 series stainless steel

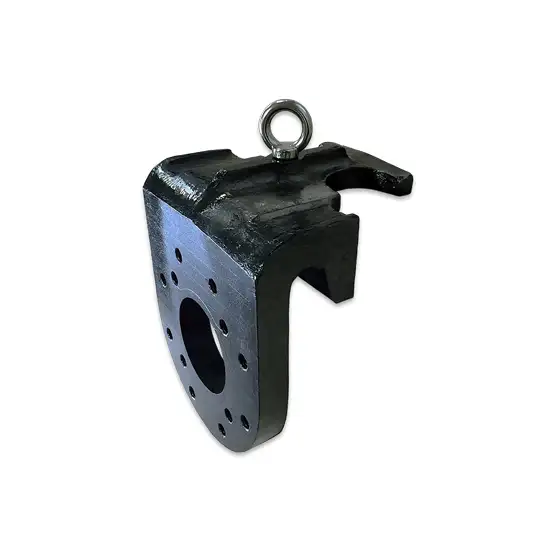

SRC3-FA / SRC4-FA
for 3″ & 4″ SRC
Key features:
- The design of this adapter allows the submersible pump to be installed or removed without requiring personnel to enter the wet well.
- Discharge: 3″ & 4″ ANSI flange
- Adapter: ductile iron with stainless steel sealing ring

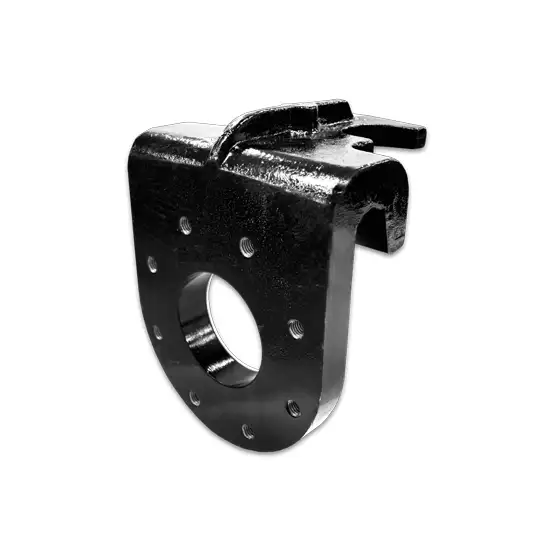

SRC6-FA for 6″ SRC
Key features:
- The design of this adapter allows the submersible pump to be installed or removed without requiring personnel to enter the wet well.
- Discharge: 6″ ANSI flange
- Adapter: ductile iron with stainless steel sealing ring
